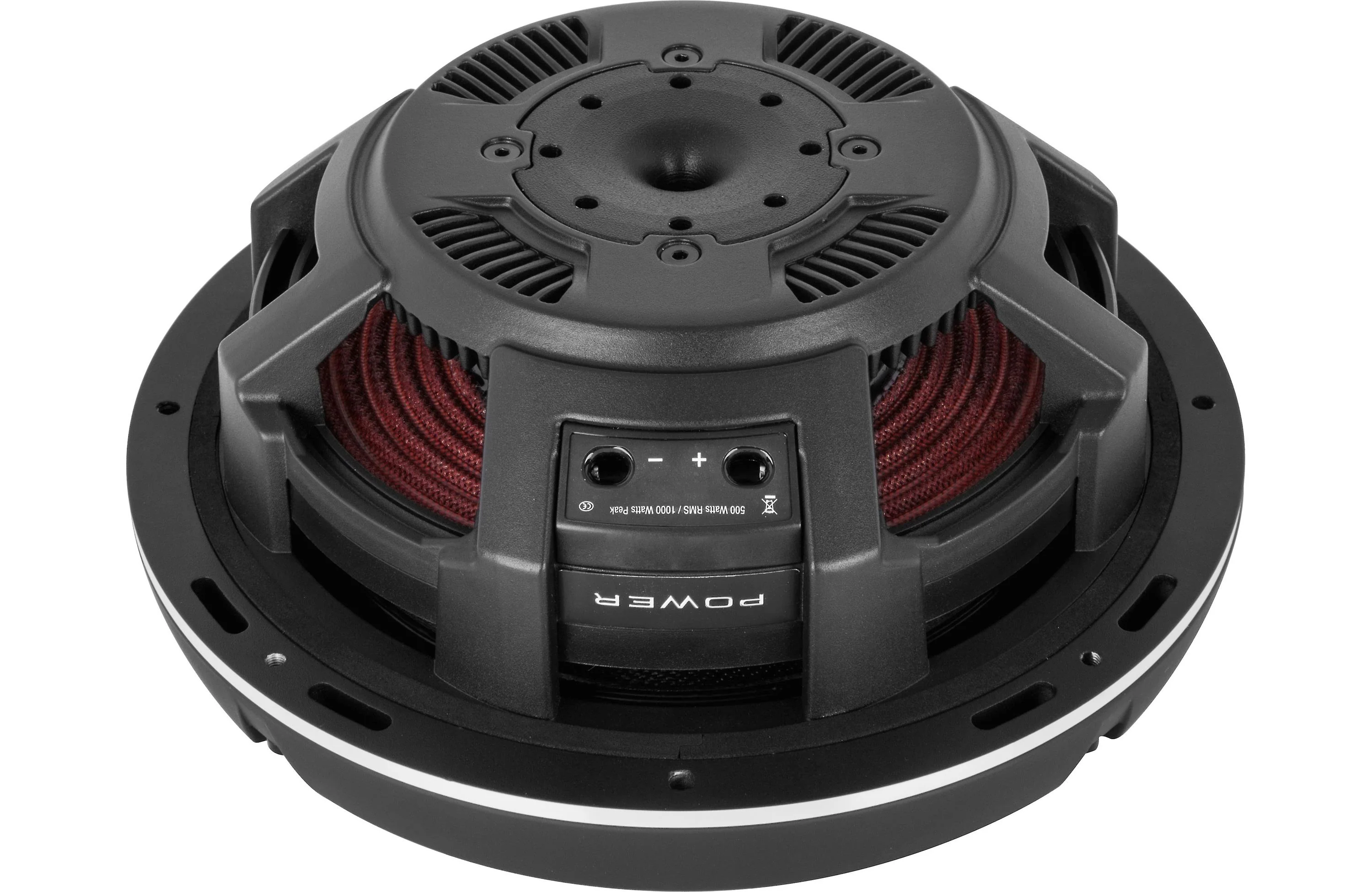

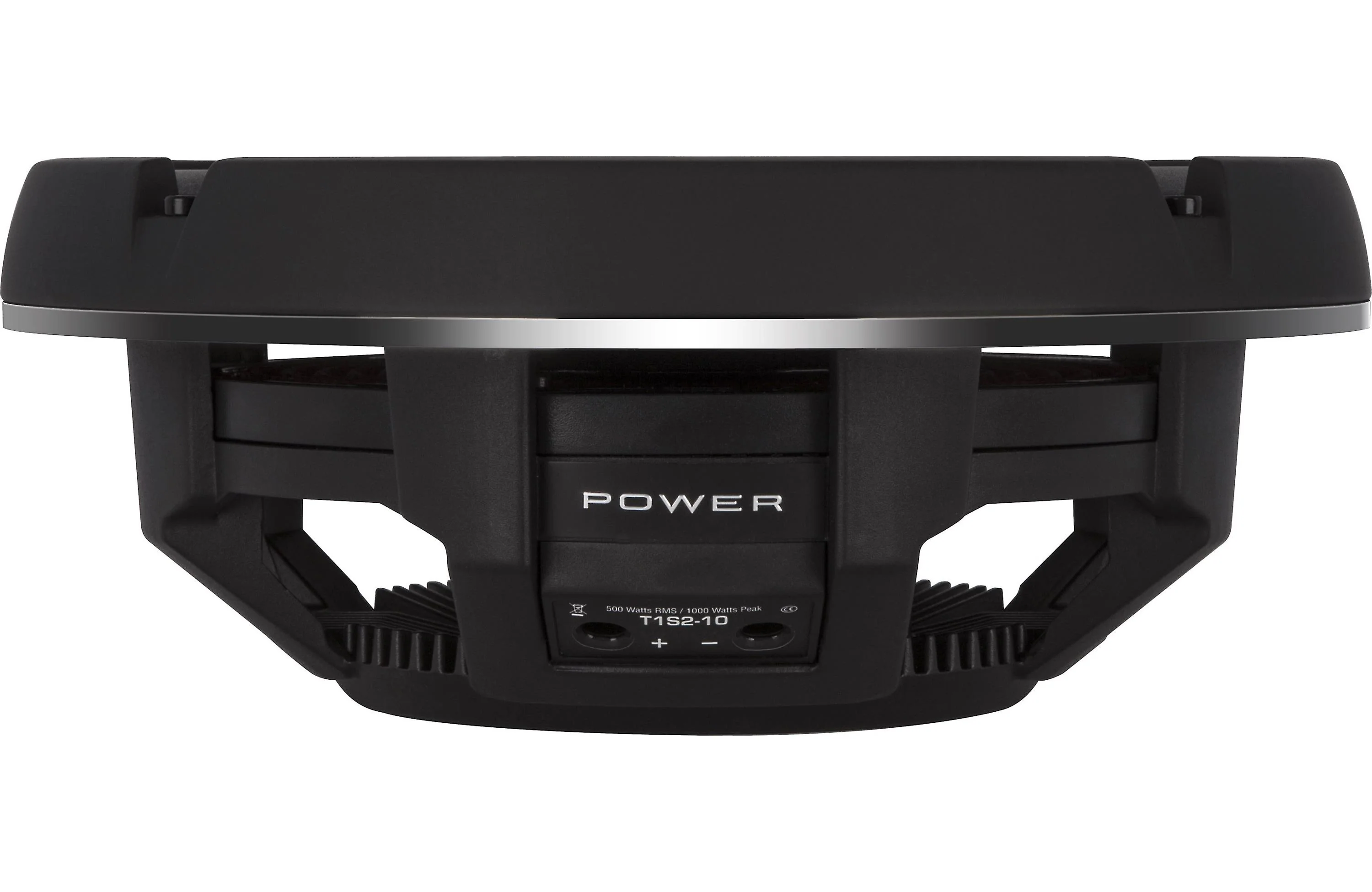

Rockford Fosgate T1S1-10 Power 10" T1 Slim Single 1-Ohm Subwoofer
Need bass but don't have a lot of space? How about more power handling than your average shallow subwoofer? Well, the T1 "Slimline" subwoofers are not your average shallow, in fact, they have been painstakingly designed to near exact performance characteristics of traditional sized Power T1 subwoofers you're already familiar with.
We're calling these "slim" subwoofers because they don't take a lot of depth and offer bass response similar to a traditional sized model. How can this be true? Well, let's just say the Wizards-of-Fos engineered an ingenious slotted voice coil assembly that exhibits long excursion travel. Don't worry, you don't need to understand it, you just have to listen to how awesome they sound!
- Carbon fiber/PMI/glass fiber cone with aluminum dustcap
- Injection molded foam surround with VAST™
- Dual Nomex progressive spiders with integrated lead wires
- Aluminum diecast frame with integrated heat sink fins
- Custom insulated push spring 10 AWG terminals
- Dual wound 2.5" voice coil with interior/exterior windings
- Encapsulating voice coil to former coupling technology (patent pending)
- Detachable die cast aluminum trim ring
- Vented pole piece
- High temp high energy neodymium motor structure
- Proprietary split yoke pass thru motor technology (patent pending)
- Integrated copper cap heat sinking shorting ring (IDHS)
- Optional grille insert available
- Optimized for sealed enclosures
- 1 Year Warranty
Voice Coil Diameter - 2.28" (58 mm)
Speaker Connector - 10 AWG slot loaded
Shipping Weight - 9.6 Lbs. (4.3 Kg.)
SPL (dB @ 1w/1m) - 82
Fs (Hz) - 42
Cutout Diameter - 9.13 in. (232 mm)
Woofer Displacement - 0.028 cu. ft. (0.82 Liters)
Le (mH) - 0.28
Sd (cm2) - 356
Size - 10"
Nominal Impedance - 1-Ohm
Power Handling (Watts RMS) - 500 Watts RMS - 1000 Watts Max
Mounting Depth - 3.01 in. (76.5 mm)
Qts - 0.95
Qes - 1.05
Qms - 9.43
Re (Ohms) - 0.9
Magnet Weight (oz) - 15.10 oz. (0.43 Kg)
CEA-2031 Compliant
Vas (Liters) - 13.1
Xmax (mm) - 15
Subwoofer Type - Shallow
Voice Coil Type - Single Voice Coil
Sealed Box Volume (Vb) - 0.8 cu. ft. (22.6 Liters)
Vented Box Volume (Vb) - 1.5 cu. ft. (42.4 Liters)
