Rockford Fosgate P3SD4-10 Punch 10" P3S Shallow 4-Ohm DVC Subwoofer

Product image 1

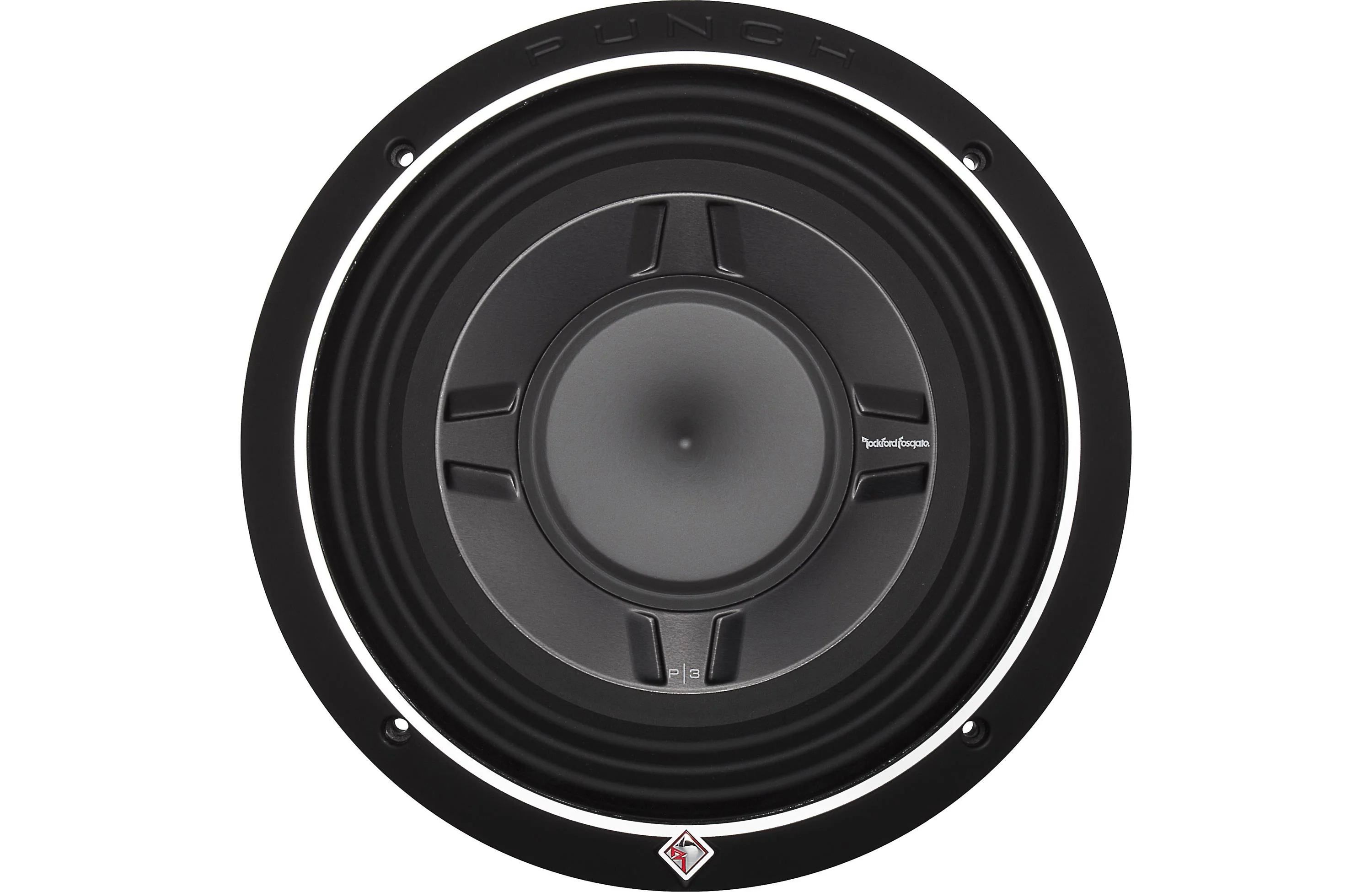

Product image 2
Product image 3
Product image 4

Rockford Fosgate P3SD4-10 Punch 10" P3S Shallow 4-Ohm DVC Subwoofer

Rockford Fosgate P3SD4-10 Punch 10" P3S Shallow 4-Ohm DVC Subwoofer

The Rockford Fosgate P3S 10" shallow mount subwoofer delivers Punch, even in depth limited situations. Rockford Fosgate understands all vehicles are not the same, because some cannot accommodate deep subwoofers. In the past, that meant no Bass. Not anymore! Now even depth challenged vehicles can have REAL Bass and the Dual Voice Coil allow configurations for every application. Shallow woofers are specifically designed for spaces where a traditional woofer cannot be used.

  • M-Roll Santoprene™ surround
  • StampCast basket with integrated spider venting
  • Anodized aluminum cone and dustcap
  • Dual linear spider with embedded 16 AWG tinsel leads
  • Diamond cut cast aluminum trim ring with optional grille
  • Shallow Motor Assembly
  • Optimized for both sealed and vented enclosures
  • 1 Year Warranty
Magnet Weight (kg) - 1.32 oz. (47 kg.)
Nominal Impedance - Dual 4-Ohm
Magnet Weight (oz) - 47 oz. (1.32 Kg)
Voice Coil Diameter - 2.5" (65.5 mm)
SPL (dB @ 1w/1m) - 83
Fs (Hz) - 42
Qms - 6.00
Vas (Liters) - 14.3
Cutout Diameter - 9.06 in. (230.0 mm)
Woofer Displacement - 0.074 cu. ft. (2.1 Liters)
Sd (cm2) - 333
Size - 10"
Speaker Connector - Dual 10 AWG Compression
Mounting Depth - 3.50 in. (89.0 mm)
Shipping Weight - 11.9 Lbs. (5.39 kg.)
Qts - 0.78
Qes - 0.90
Xmax (mm) - 8.1
CEA-2031 Compliant
CEA-2031 Guidelines
Power Handling (Watts RMS) - 300 Watts RMS - 600 Watts Max
Re (Ohms) - 6.80
Le (mH) - 4.3
Subwoofer Type - Shallow
Voice Coil Type - Dual Voice Coil
Sealed Box Volume (Vb) - 0.5 cu. ft. (14.1 Liters)
Vented Box Volume (Vb) - 1.0 cu. ft. (28.3 Liters)
$69.00

Original: $229.99

-70%
Rockford Fosgate P3SD4-10 Punch 10" P3S Shallow 4-Ohm DVC Subwoofer

$229.99

$69.00
